Pipe Facing Machine
Technical Sheet
Lorem ipsum dolor sit amet consectetur. Vehicula adipiscing arcu odio vitae magna ut. Porttitor amet diam dolor leo nulla tortor enim ac sit. Id ut eu pharetra et sed. Nunc vel vulputate neque vel ante sit. Mattis aliquet suscipit lectus consectetur. Varius tempor convallis suspendisse vel malesuada diam orci. Viverra orci nibh lacus platea. Ante et vel lectus tincidunt hac feugiat mi porta. Purus dignissim adipiscing consectetur diam elementum at arcu non amet. Arcu et hendrerit suspendisse turpis arcu at. Facilisis malesuada feugiat dui tristique nibh mattis enim nunc.

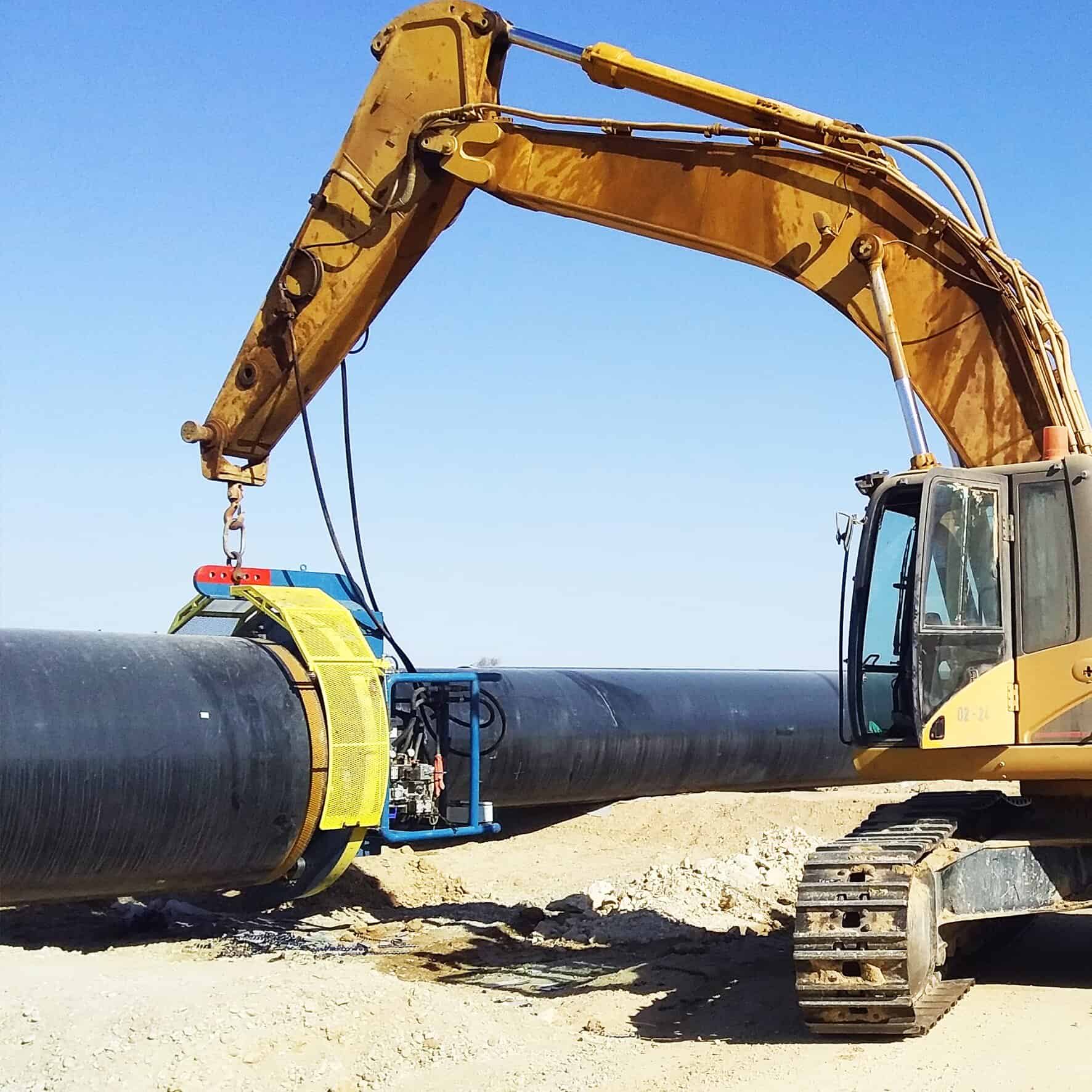

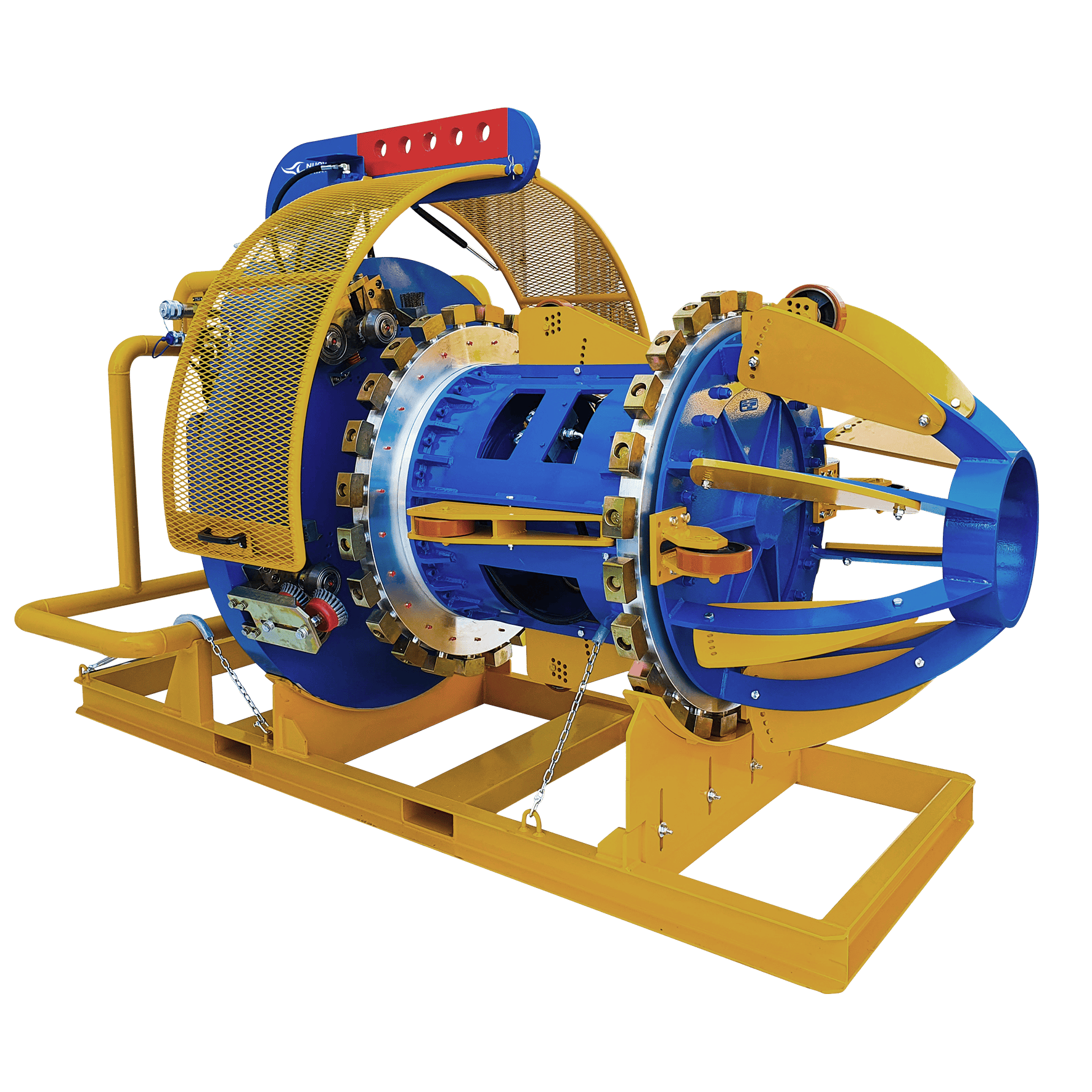

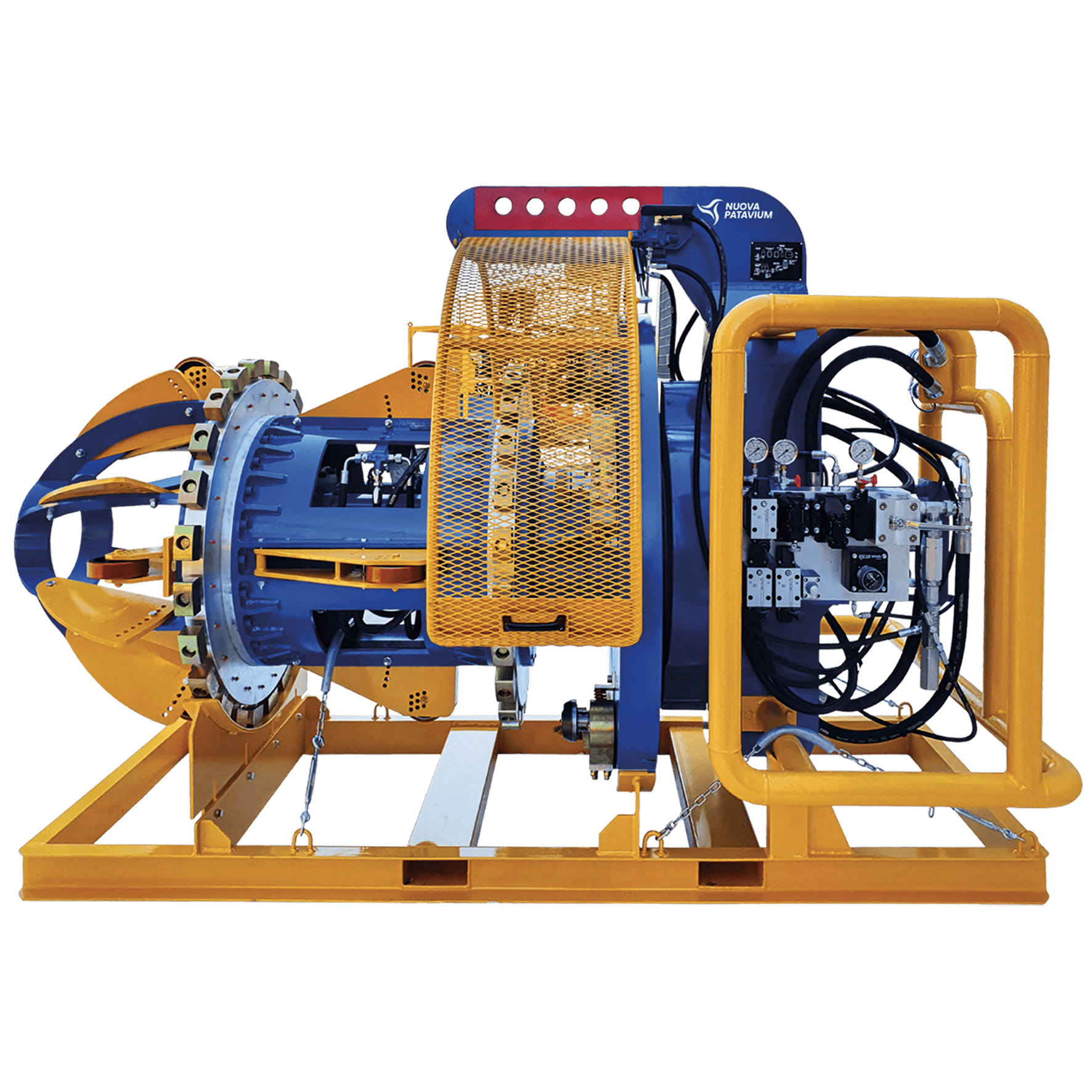

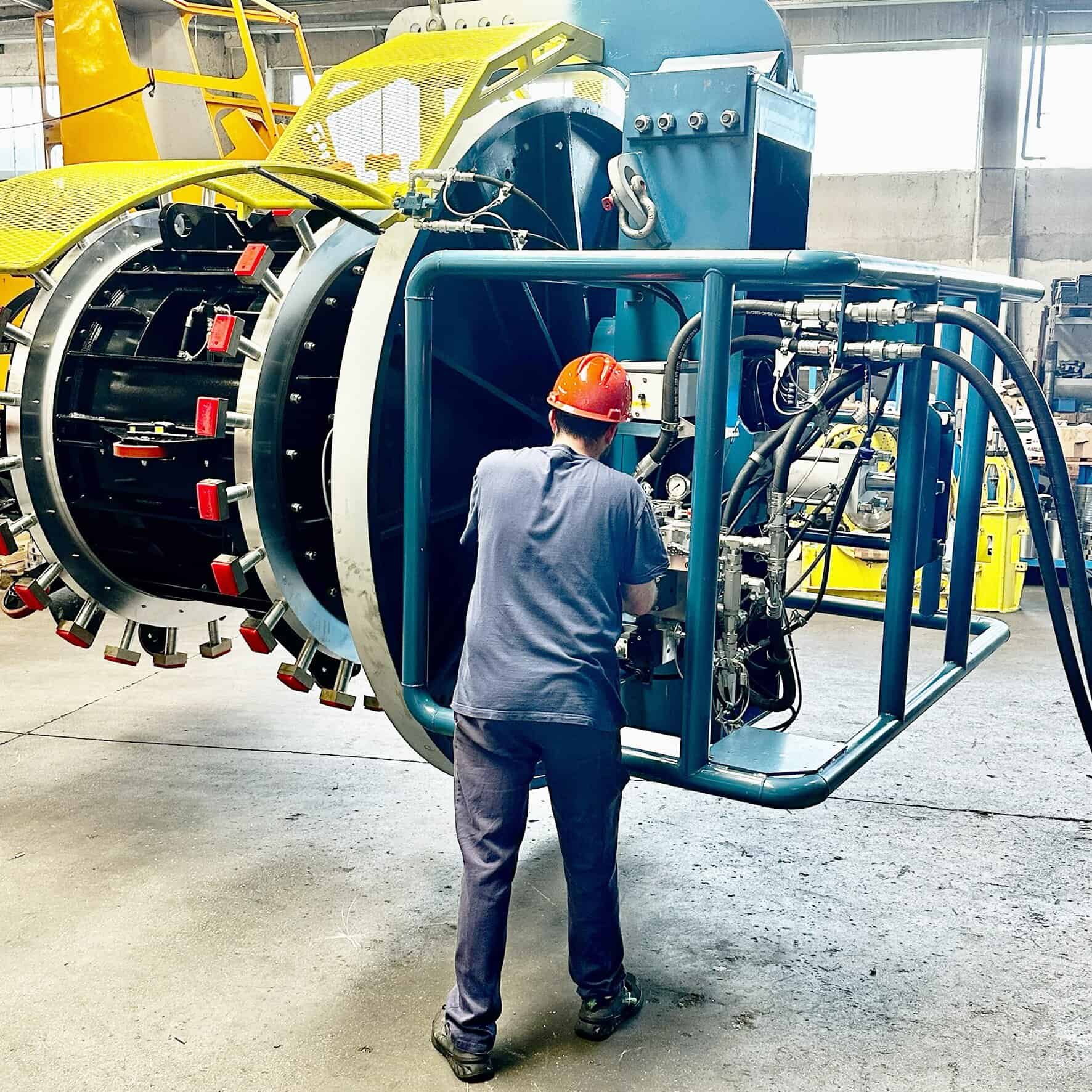

Pipe Facing Machines (PFM) by NUOVA PATAVIUM are the fastest cutting, most versatile and user-friendly machines on the market today. Years of experience with the highest quality The machines are powered by a Hydraulic Power Unit (Diesel or electric engine) or a built in power take of other hydraulic circuit such as pipelayer/excavator (no adaptor needed).
Building Excellence
with Technology.

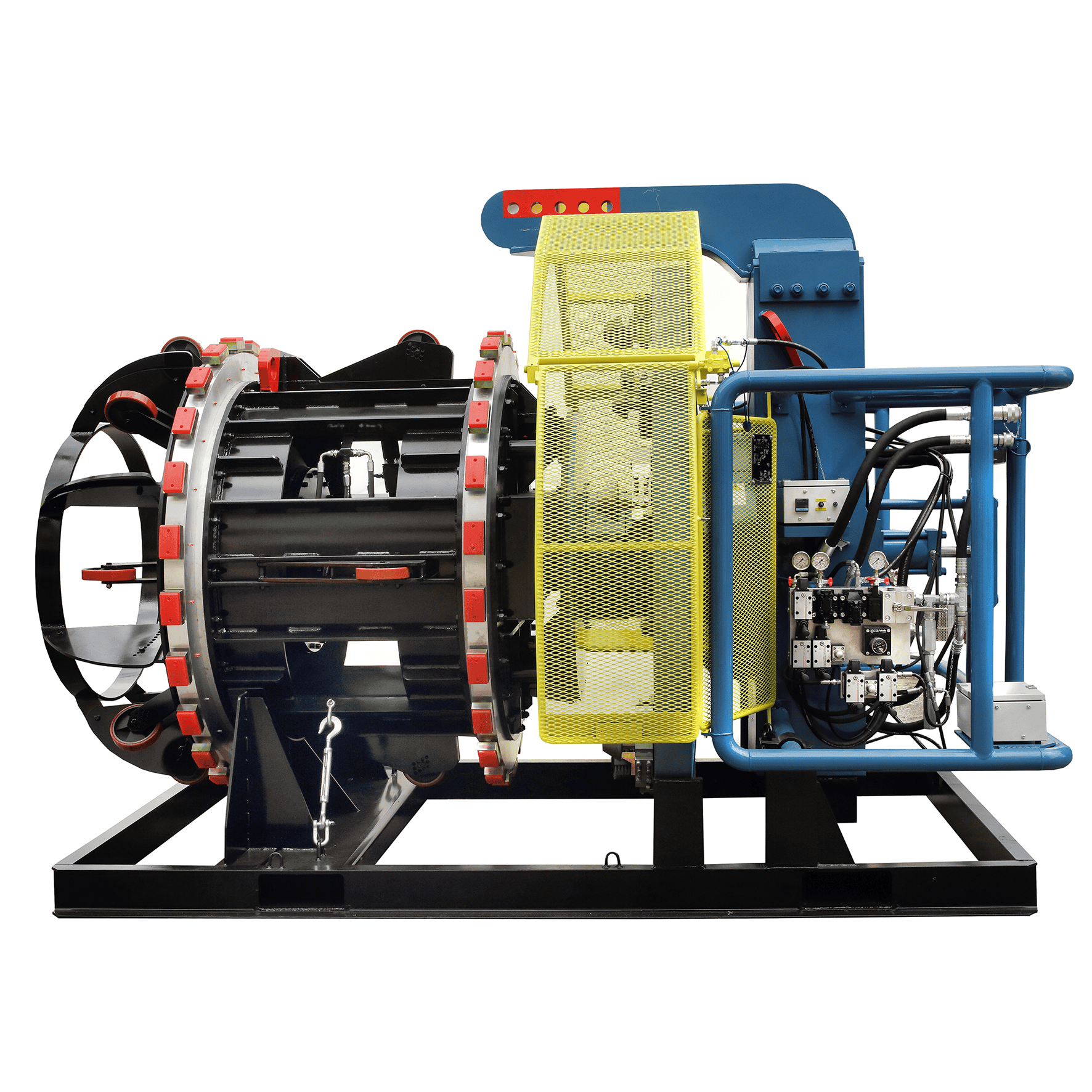

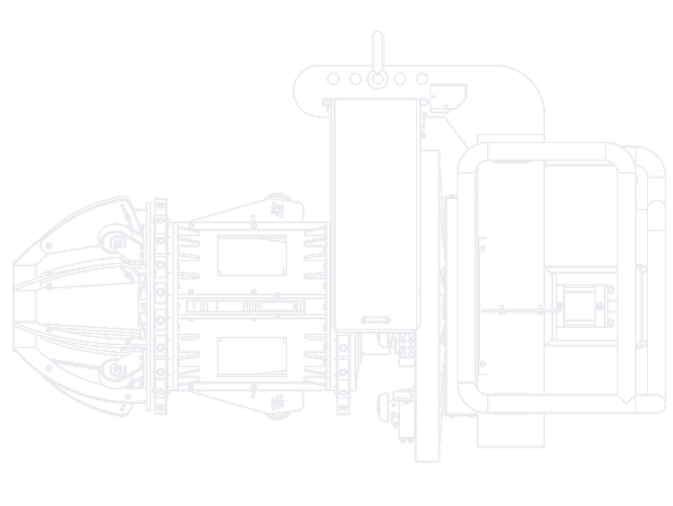

The machines have two major blocks:

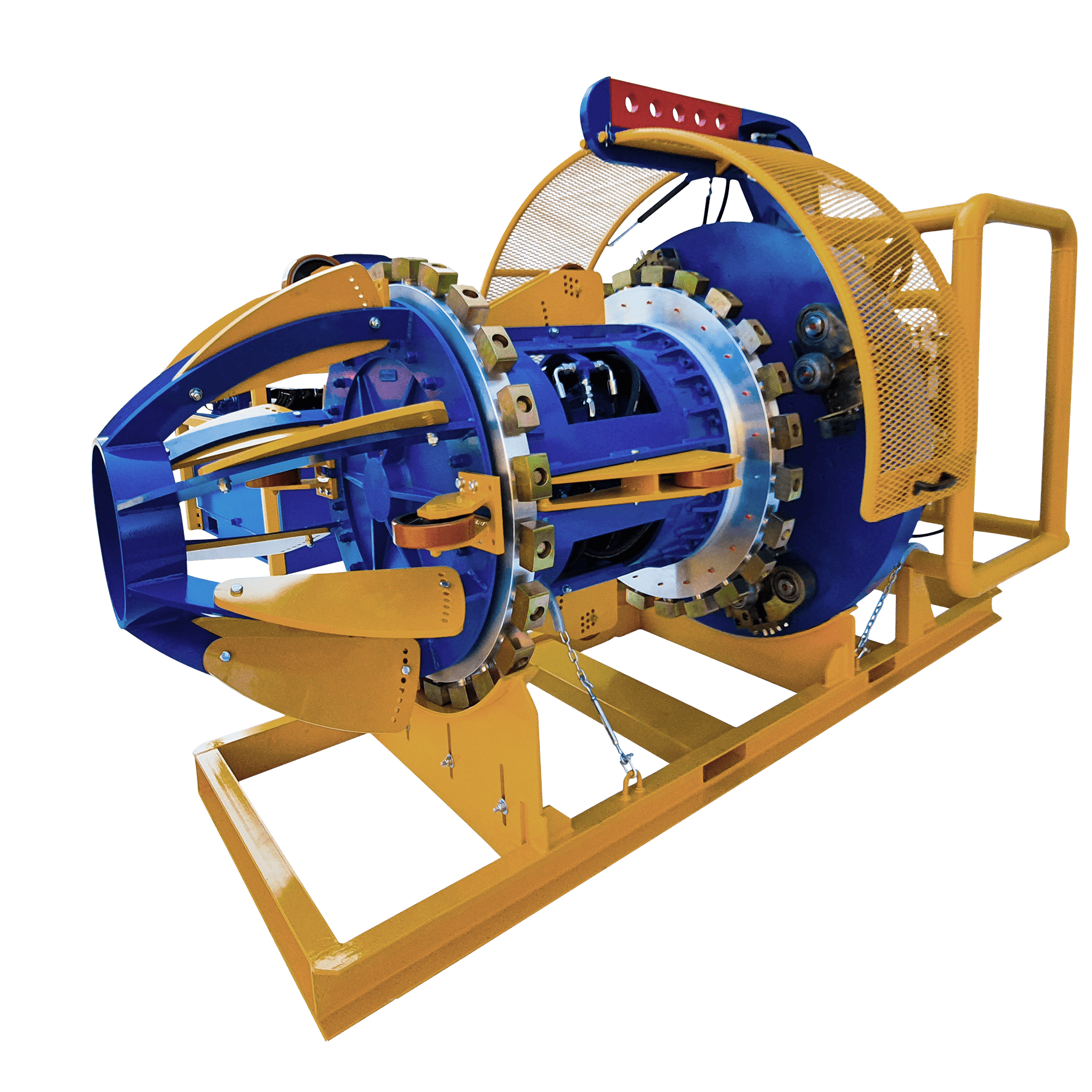

The clamp section has two sets of hydraulically powered clamping shoes that are designed to work equally and simultaneously.

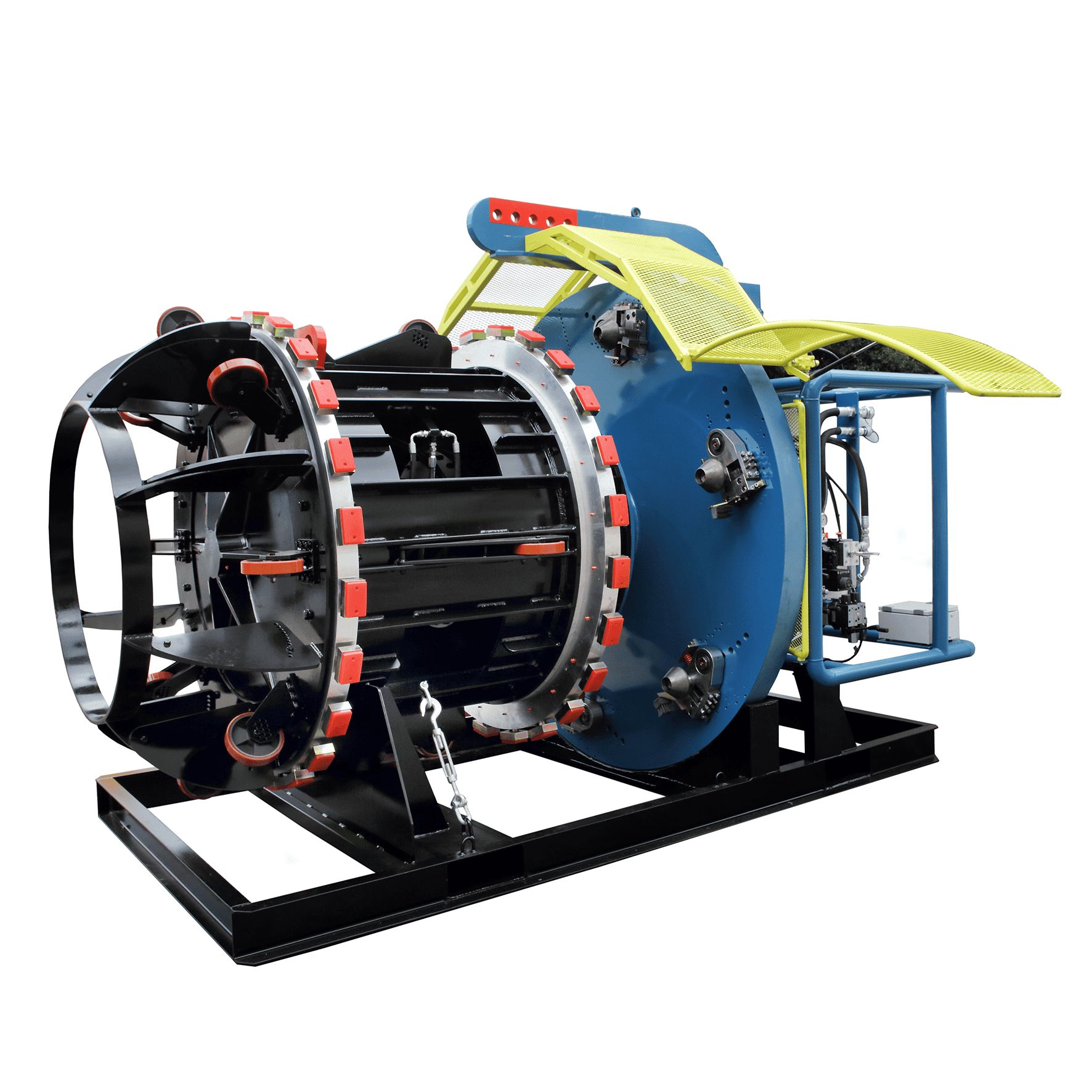

Consists of a rotating faceplate with four to six tool holders each holding tungsten carbide cutting tips.

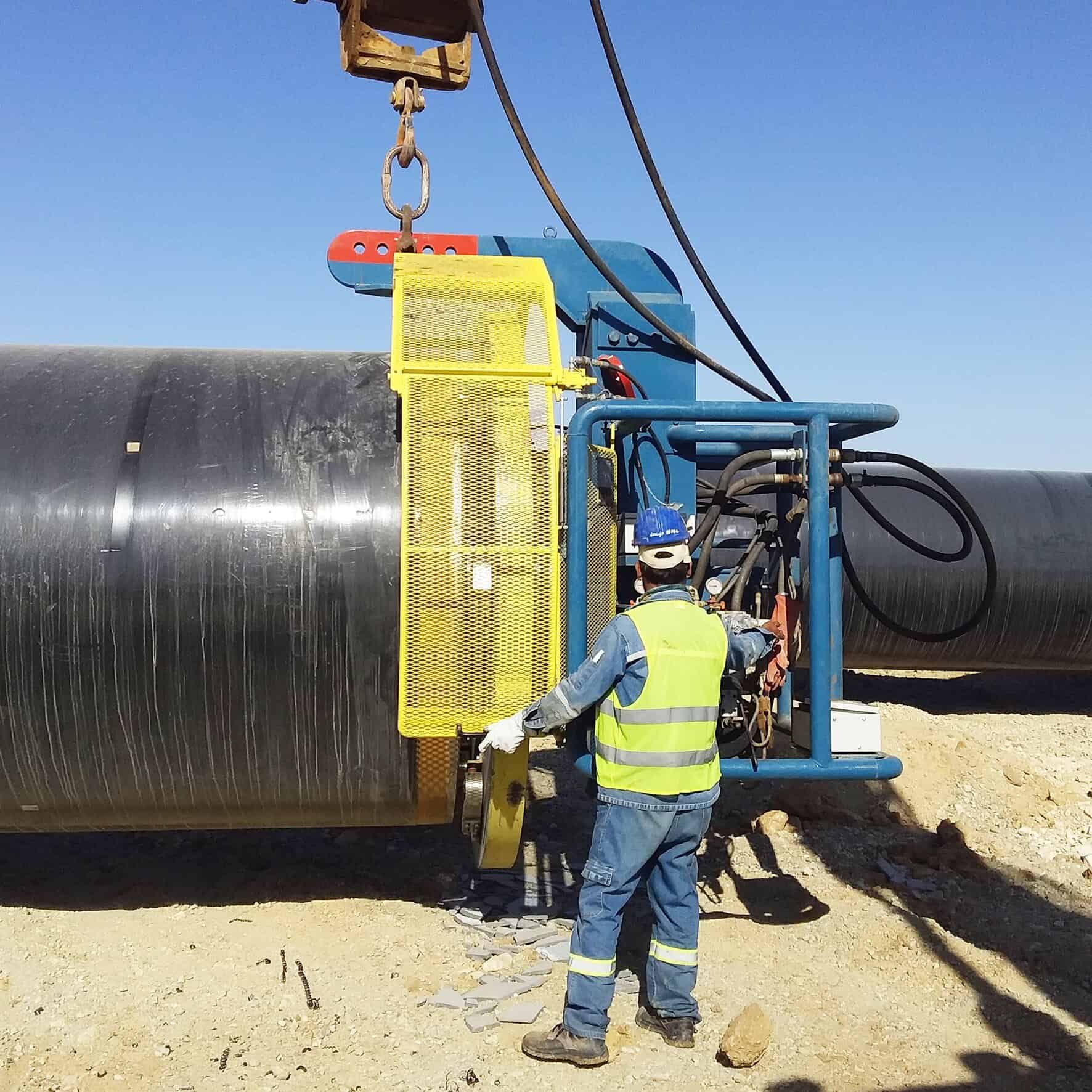

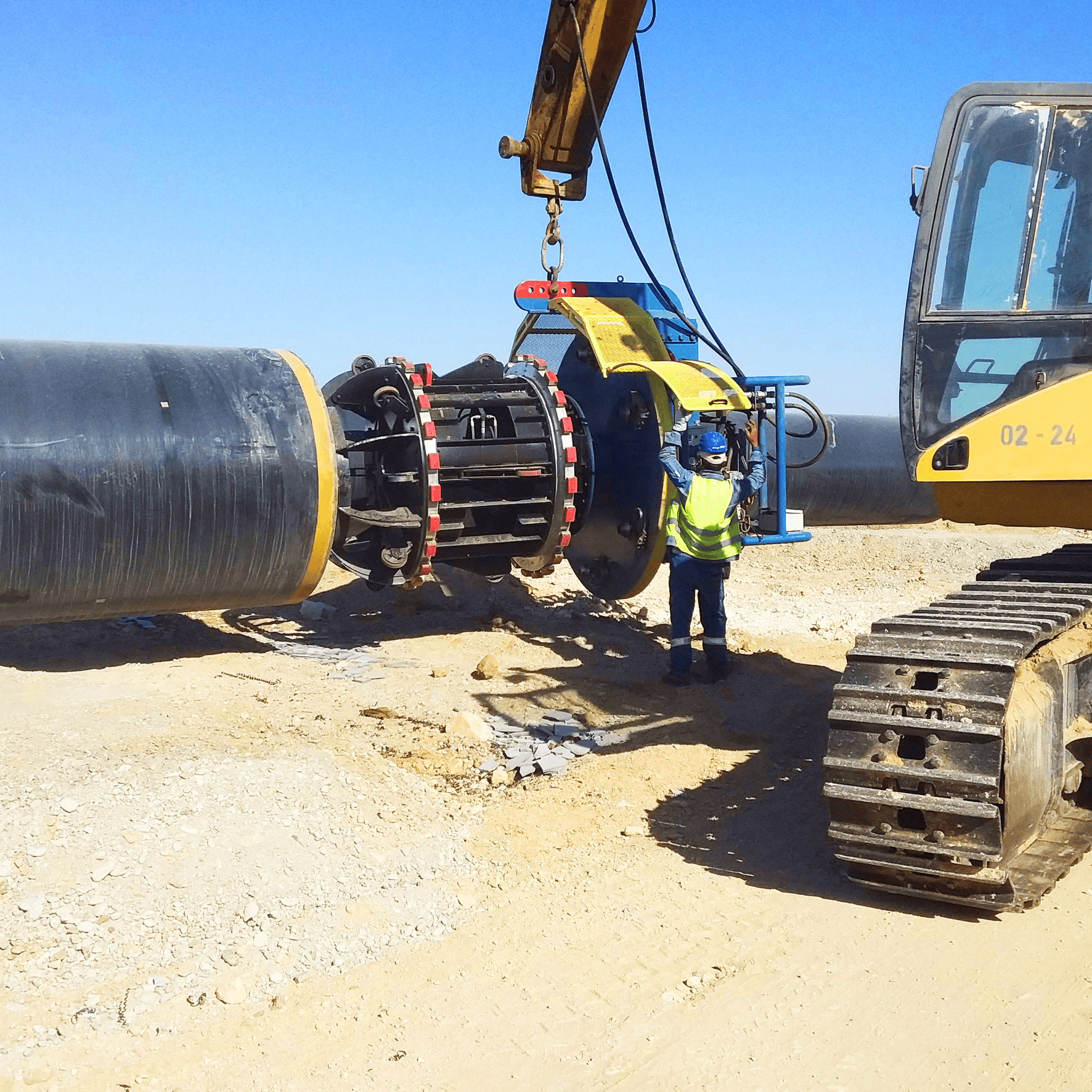

The PFM is secured to the pipe by expanding the clamp shoes inside the pipe. Tools can be set a wide variety of bevel designs and wall thicknesses. Each tool holder may cut a different bevel angle simultaneously. The PFM operation take from 2 to 6 minutes depending on pipe wall thickness and the experience of the operator.
Building excellence
whit the design.
Lorem ipsum dolor sit amet consectetur. Vehicula adipiscing arcu odio vitae magna ut. Porttitor amet diam dolor leo nulla tortor enim ac sit. Id ut eu pharetra et sed. Nunc vel vulputate neque vel ante sit. Mattis aliquet suscipit lectus consectetur. Varius tempor convallis suspendisse vel malesuada diam orci. Viverra orci nibh lacus platea. Ante et vel lectus tincidunt hac feugiat mi porta. Purus dignissim adipiscing consectetur diam elementum at arcu non amet. Arcu et hendrerit suspendisse turpis arcu at. Facilisis malesuada feugiat dui tristique nibh mattis enim nunc.
External
Brush Tool
Aggressive tool suited to heavy cleaning jobs and for brushing. It removes spatter, paint, rust, scale and other kinds of contamination, to expose the metal and coating.
Coating
Removal Tool
Do you require the removal of plastic coating from protected pipes to allow weld testing prior subsea installation? The Coating Removal Tool enables you to cut thick plastic coating cleanly to allow exact measurements.
Tapering
Tool
The Tapering Tool is the perfect solution when dealing with pipes of different thickness. It easily adjust the thickness of the pipes in order to create a secure join.
J-Lay
The J-lay method is intended for deep-water pipeline installation. The pipe leave the lay system in the almost vertical position required for this installation type.
Container
Box
A container box is available to store the PFM and accessories. It includes hooks for crane lifts and a packet for lifting with forklift.
The machine is delivered supplied with
the following documentations.
All NP Pipe Facing Machine are supplied with all necessary certification and operation documentation including a Use and Maintenance Manual, a Spare Parts book, CE Certification and Test Report.
Use and Maintenance Manual
Spare Parts Book
CE Certification
Test Report
Scan the QR code on the product you purchased to download the files
